Máy phát điện CATERPILLAR - SYNERGY POWER CORPORATION

Product catalog

Product Description

Caterpillar is the world's largest manufacturer of high-speed diesel generator sets and engines, offering the largest range of specifications available.

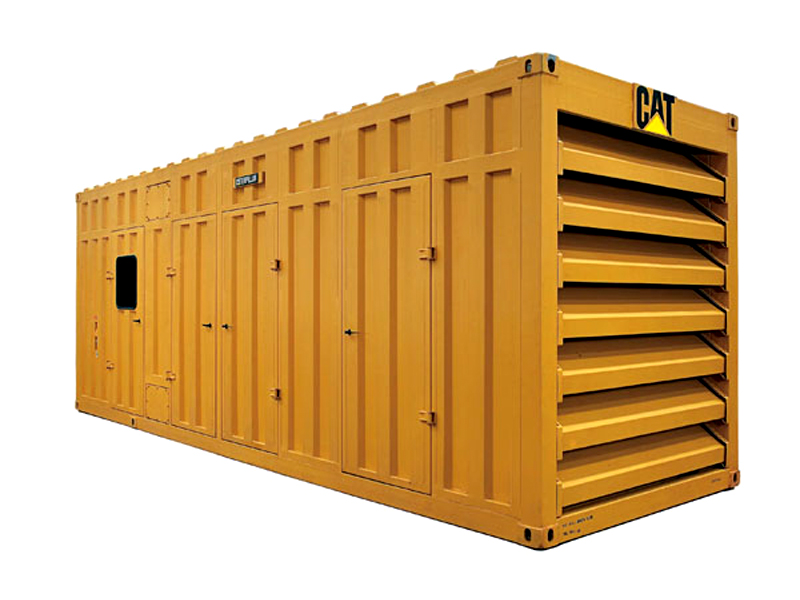

Cat Diesel Generator Sets

Ratings from 13kW to 17,460k
Powered by Cat engines
Wide range of factory-designed options
Easy to specify, permit, install and test
World-class fuel efficiency and low life-cycle costs
Excellent transient response and steady state performance
Emissions compliance with most worldwide regulations
Single source and turnkey support from the Cat® Dealer network

MODEL	MINIMUM RATING	MAXIMUM RATING	PRIME	Units: US \| Metric
3406C	275 ekW (275 kVA)	400 ekW (400 kVA)		View Specifications
3412C	591 ekW (680 kVA)	800 ekW (900 kVA)		View Specifications
3512A	890 ekW (1000kVA)	1250 ekW (1400kVA)		View Specifications
3512B	1230 ekW (1320kVA)	1500 ekW (1875 kVA)		View Specifications
3516A TA	1450 ekW (1600 kVA)	1750 ekW (2000 kVA)		View Specifications
3516B	1640 ekW (1750 kVA)	2250 ekW (2500 kVA)		View Specifications
3606 (Medium Speed)	1375 ekW (1775 kVA)	2000 ekW (2688 kVA)		View Specifications
3608 (Medium Speed)	1830 ekW (2363 kVA)	2660 ekW (3575 kVA)		View Specifications
3612 (Medium Speed)	2750 ekW (3550 kVA)	4000 ekW (5375 kVA)		View Specifications
3616 (Medium Speed)	3660 ekW (4725 kVA)	5320 ekW (7150 kVA)		View Specifications
C1.1	50Hz: 6.8 ekW (6.8 kVA) 60Hz: 8.0 ekW (8.0 kVA)	50Hz: 7.6 ekW (9.5 kVA) 60Hz: 8.8 ekW (11.0 kVA)		View Specifications
C1.5	50Hz: 10.0 ekW (10.0 kVA) 60Hz: 12.0 ekW (12.0 kVA)	50Hz: 10.8 ekW (13.5 kVA) 60Hz: 13.2 ekW (16.5 kVA)		View Specifications
C13	320 ekW (350 kVA)	400 ekW (450 kVA)		View Specifications
C15	320 ekW (365 kVA)	500 ekW (550 kVA)		View Specifications
C175-16	2500 ekW (2500 kVA)	3100 ekW (3100 kVA)		View Specifications
C175-20	3250 ekW (3250 kVA)	4000 ekW (4000 kVA)		View Specifications
C18	500 ekW (550 kVA)	600 ekW (700 kVA)		View Specifications
C2.2	50Hz: 13.0 ekW (13.0 kVA) 60Hz: 15.5 ekW (15.5 kVA)	50Hz: 17.6 ekW (22.0 kVA) 60Hz: 20.0 ekW (25.0 kVA)		View Specifications
C27	680 ekW	800 ekW		View Specifications
C27 Tier 4 Interim	725 ekW	800 ekW		View Specifications
C3.3	50Hz: 24.0 ekW (24.0 kVA) 60Hz: 27.0 ekW (33.8 kVA)	50Hz: 52.0 ekW (65.0 kVA) 60Hz: 60.0 ekW (75 kVA)		View Specifications
C32	830 ekW (910 kVA)	1000 ekW (1250 kVA)		View Specifications
C32 with Upgradeable Packaging	830 ekW (910 kVA)	1000 ekW (1250 kVA)		View Specifications
C4.4	50Hz: 40.0 ekW (50.0 kVA) 60Hz: 72.0 ekW (90.0 kVA)	50Hz: 88.0 ekW (110.0 kVA) 60Hz: 100.0 ekW (125.0 kVA)		View Specifications
C7.1	50Hz: 100.0 ekW (125.0 kVA) 60Hz: 108.0 ekW (135.0 kVA)	50Hz: 174.4 ekW (218.0 kVA) 60Hz: 150.0 ekW (187.5 kVA)		View Specifications
